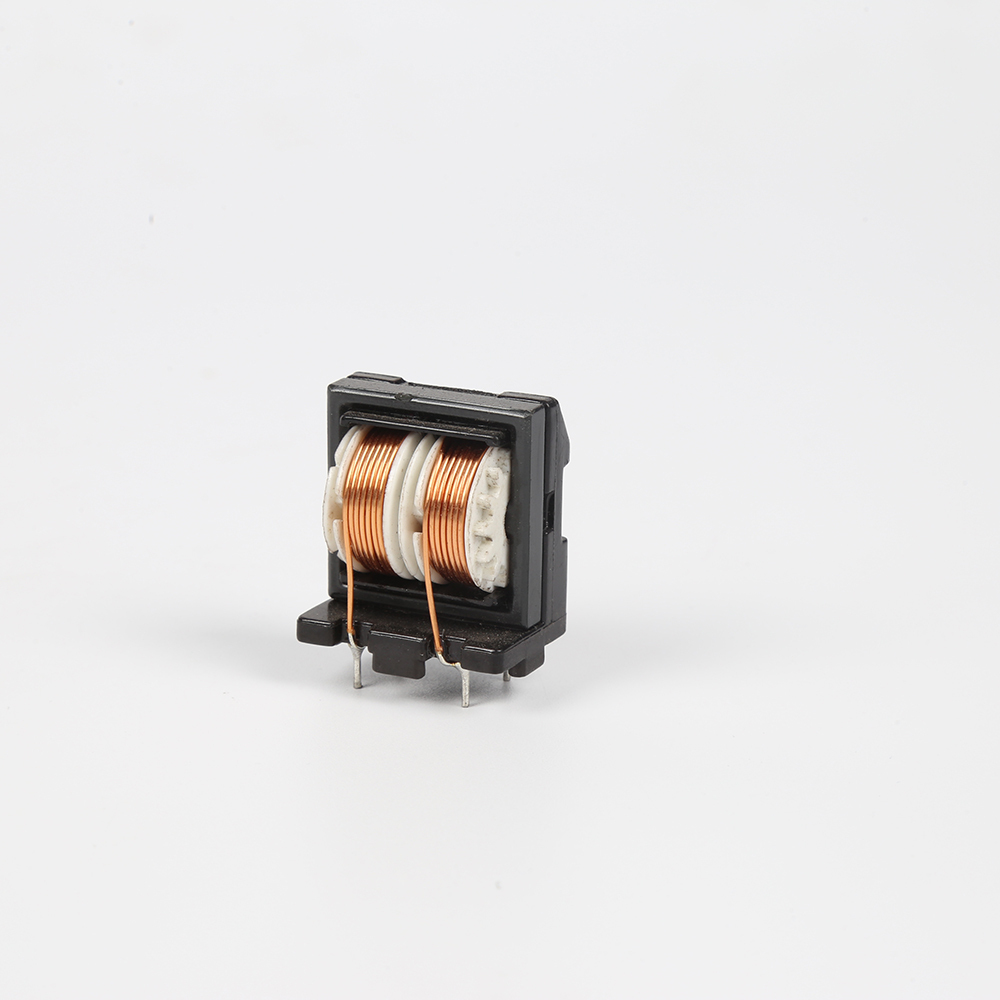

Vertical Common Mode Inductive Filter

Get Latest Price

Payment Type:	T/T,Others
Incoterm:	FOB
Min. Order:	100 Piece/Pieces
Transportation:	Ocean,Air

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: SG-0496

Origin: China

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

A vertical common mode inductive filter is a type of filter that is used to reduce common mode noise or interference in electrical circuits. Common mode noise refers to unwanted signals that are present in both the positive and negative lines of a circuit, and can cause problems such as electromagnetic interference (EMI) and radio frequency interference (RFI).

The vertical common mode inductive filter is designed to block common mode noise by using inductors that are placed in series with the positive and negative lines of a circuit. The inductors are wound in such a way that they provide a high impedance to common mode noise, while allowing the desired signal to pass through with minimal attenuation.

The vertical configuration of the inductors allows for a compact design, making it suitable for use in applications where space is limited. It is commonly used in power supplies, motor drives, and other electronic devices that are susceptible to common mode noise.

Overall, the vertical common mode inductive filter is an effective and reliable way to reduce common mode noise in electrical circuits, ensuring that the desired signal is not degraded or distorted by unwanted interference.

Vertical Common Mode Inductive Filter
