ETD34 horizontal double slot high frequency transformer

ETD34 horizontal double slot high frequency transformer

Get Latest Price

Payment Type:	T/T,Others
Incoterm:	CFR,FOB
Min. Order:	100 Piece/Pieces
Transportation:	Ocean,Air

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: SG-0429

Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

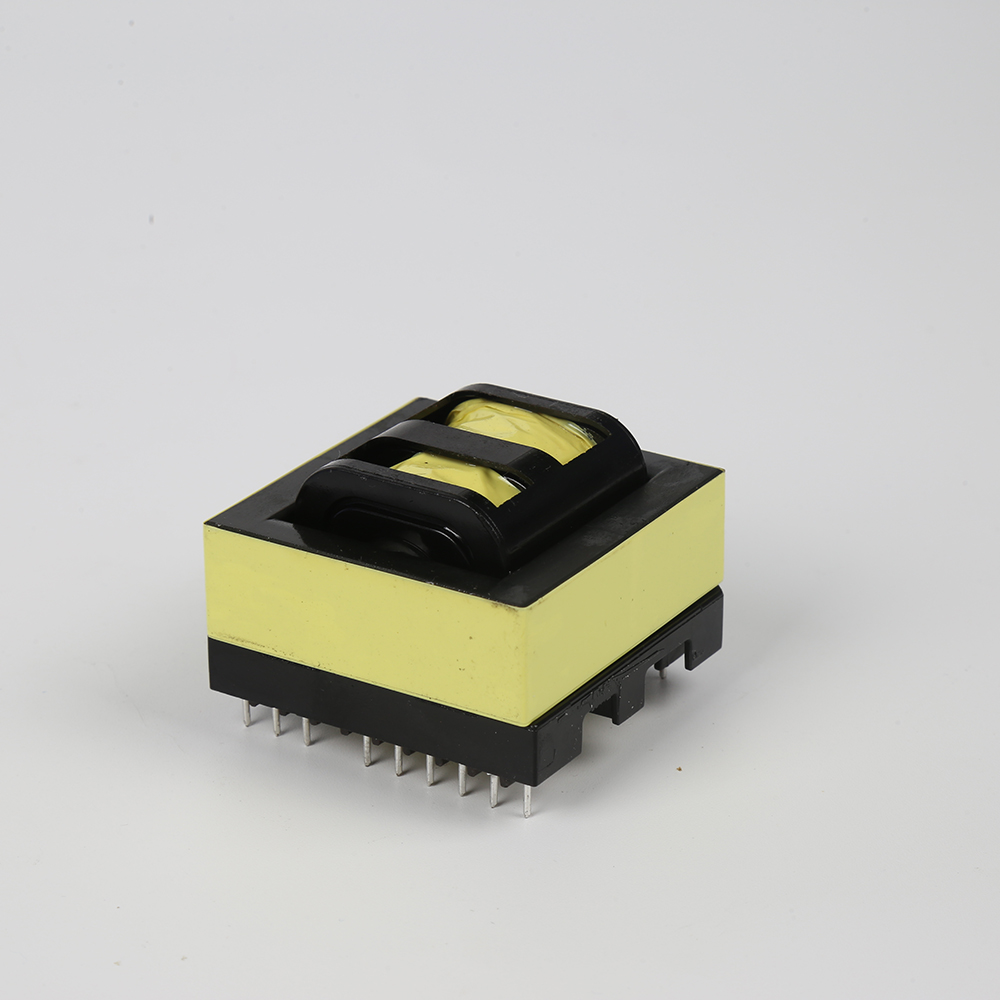

The ETD34 horizontal double slot High frequency transformer is a type of Transformer that is used in high frequency applications. It is designed to operate at frequencies above 100 kHz and is commonly used in power supplies, inverters, and other electronic devices.

The transformer has a core made of ferrite material, which is a type of magnetic material that is highly efficient at conducting magnetic fields. The core is shaped like a rectangular toroid, with two slots cut into the top of the core. The slots are positioned side by side, and each one is designed to hold a winding of wire.

The transformer works by transferring energy from one winding to the other through the magnetic field created by the core. When an AC voltage is applied to one winding, it creates a magnetic field that induces a voltage in the other winding. The amount of voltage induced in the second winding depends on the number of turns in each winding and the strength of the magnetic field.

The ETD34 horizontal double slot high frequency transformer is designed to handle high currents and high voltages, making it ideal for use in power electronics applications. It is also compact and lightweight, making it easy to integrate into electronic devices.
