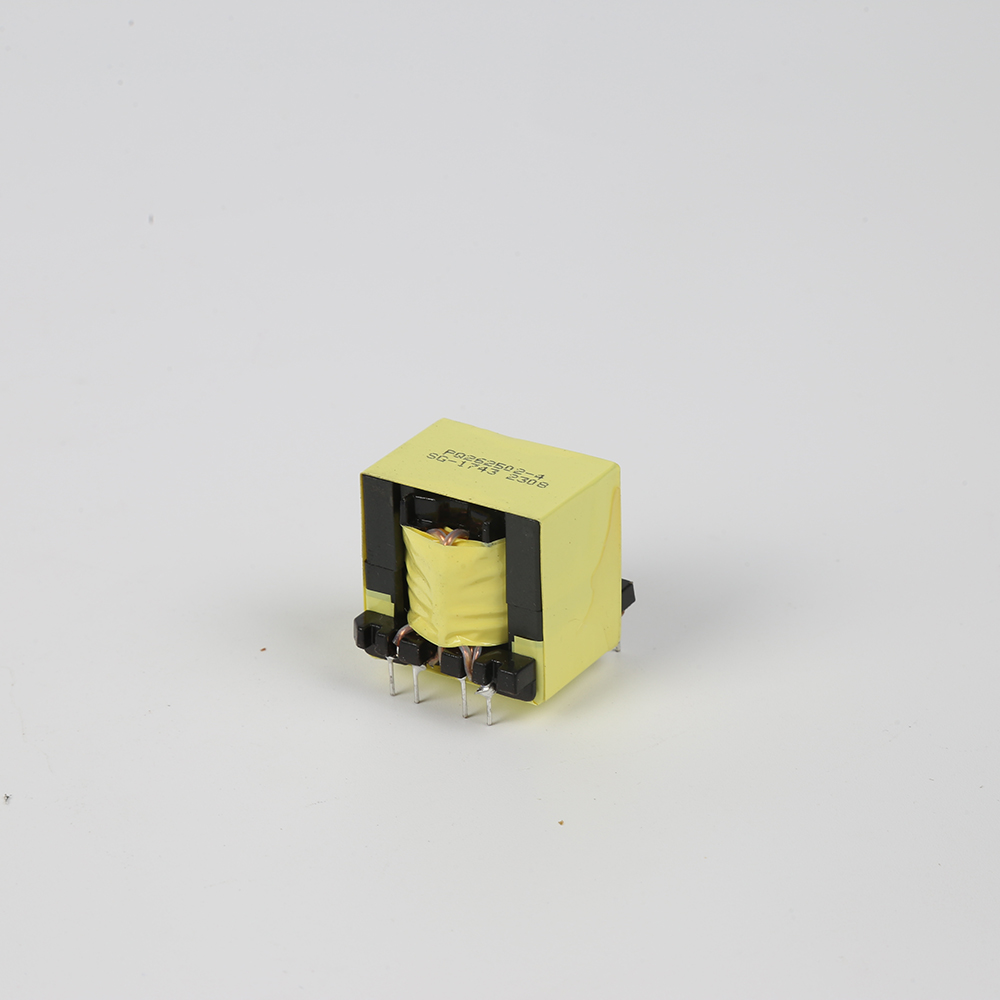

PQ2625 Dual Output Transformer

Get Latest Price

Payment Type:	T/T,Others
Incoterm:	FOB,CFR
Min. Order:	100 Piece/Pieces
Transportation:	Ocean,Air

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: SG-00047

Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

A switching power supply main Transformer is a key component in a switching power supply circuit. It is responsible for transforming the input voltage to the desired output voltage, and also for providing electrical isolation between the input and output circuits.

The design and specifications of a switching power supply main transformer depend on various factors such as the input voltage range, output voltage and current requirements, efficiency, and size constraints. Generally, these transformers are designed with high permeability magnetic cores such as ferrite or powdered iron, and are wound with multiple layers of insulated wire to achieve the desired turns ratio and voltage isolation.

To ensure reliable and efficient operation, the main transformer should be designed and manufactured to meet the relevant safety and performance standards such as UL, CE, and RoHS. It is also important to consider factors such as thermal management and electromagnetic interference (EMI) when designing and selecting a switching power supply main transformer.

Pq2625 Dual Output Transformer
