Horizontal Common Mode Inductive Filter

Get Latest Price

Payment Type:	T/T,Others
Incoterm:	FOB,CFR
Min. Order:	100 Piece/Pieces
Transportation:	Ocean,Air

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: SG-0031

Place Of Origin: China

Packaging & Delivery

Selling Units

Piece/Pieces

Product Description

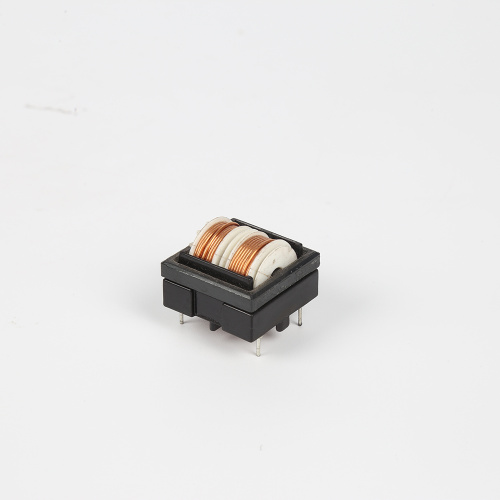

A Horizontal Common Mode Inductor is a type of Inductor that is designed to suppress common mode noise in electronic circuits. It is called "horizontal" because the windings are laid out parallel to the circuit board, as opposed to being wound vertically.

Common mode noise is a type of electromagnetic interference (EMI) that occurs when unwanted signals are present on both conductors of a transmission line. This can lead to problems such as data corruption, signal degradation, and even damage to electronic components.

A Common Mode Inductor works by creating a high impedance path for common mode noise to flow through, while allowing normal signals to pass through unaffected. The horizontal layout of the windings in a common mode inductor helps to minimize the parasitic capacitance and inductance that can arise in a vertical layout, which can reduce the effectiveness of the inductor.

Horizontal common mode inductors are commonly used in power supplies, motor drives, and other applications where EMI is a concern. They are usually made using a ferrite core and copper wire and can be designed to handle a wide range of frequencies and currents.
