Vertical common mode inductor

Get Latest Price

Payment Type:	T/T,Others
Incoterm:	FOB,CFR
Min. Order:	100 Piece/Pieces
Transportation:	Ocean,Air

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: SG-1915

Use: Power, Electronic

Packaging & Delivery

Selling Units

Piece/Pieces

Product Description

When designing electronic circuits, managing electromagnetic interference (EMI) is crucial since it can disrupt signal integrity and affect nearby devices. Our vertical common mode inductors are engineered to tackle this issue, helping to maintain clean and stable circuit operations.

What is common mode noise? It's a type of EMI that can:

Distort Signals: The noise can alter the signals you're trying to send through a circuit, compromising data and performance.

Create Crosstalk: It can also leak into other circuits, causing crosstalk and potentially damaging sensitive components.

Cause Interference: Worse still, the noise can sometimes expand beyond the initial circuit and mess with other nearby electronics.

Vertical common mode inductors counteract this by offering high impedance to these noise currents, acting as a filter to keep them away from your signals. They are characterized by:

High Inductance: This helps block the flow of common mode noise current.

Vertical Build: Their upright construction means they filter noise effectively without taking up too much space on a circuit board.

Multiple Windings: Models with several windings can filter out noise even better and reject a wider range of frequencies.

Regarding installation, vertical common mode inductors offer:

Through-Hole Mounting: This traditional method secures the Inductor firmly to the circuit board.

Surface Mounting: Some versions can be mounted on the surface of the board for a more compact design.

Base Mounting: Others have a solid base that makes putting them together easier and adds stability to the circuit.

Picking the right vertical common-mode inductor—thinking about inductance, how you’ll mount it, and the space it'll need—can be a key part of making sure an electronic design works smoothly and doesn't generate too much noise.

Overall, vertical common-mode inductors are a practical and valuable tool for any engineer or designer aiming to reduce EMI and safeguard the performance of their electronic circuits. Their high inductance values, space-efficient design, and flexible installation choices make them a smart pick for addressing noise issues in electronic projects.

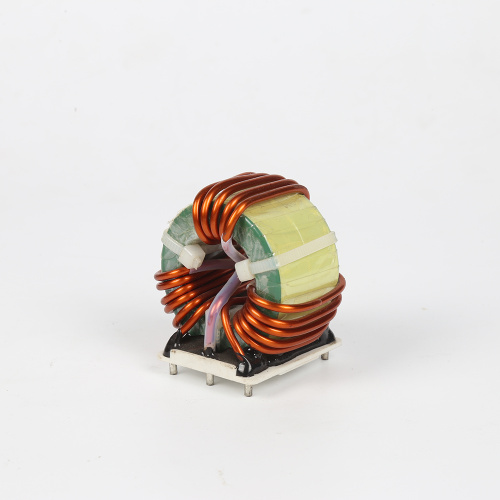

Vertical Common Mode Inductor
